CX High-Speed Injection Molding Machine

Home             Products              High-Speed Injection Molding Machine              CX High-Speed Injection Molding Machine

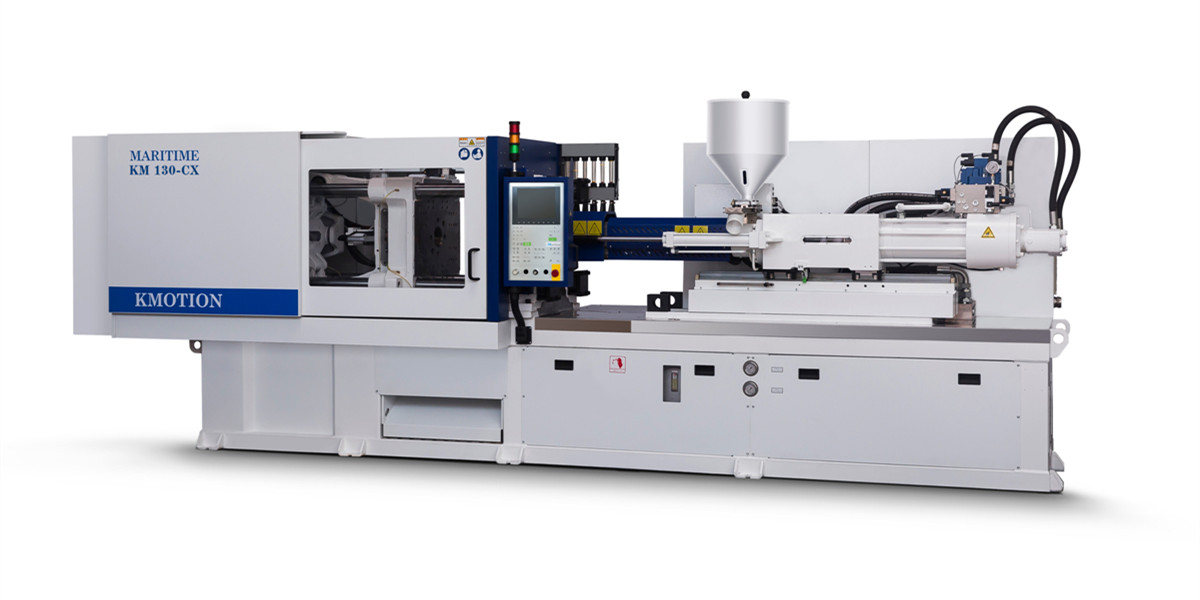

Kmotion-CX 130 Ton

Kmotion-CX 130 Ton
Kmotion-CX 130 Ton
Kmotion-CX 130 Ton
Kmotion-CX 130 Ton
Request a Quote
Description

KM 130-CX Technical parameters

Screw
diamete
Shot
weight(PS)
Injection
speed
Clamping
Force
Tie-Bar
Distance
Mold
opening
stroke
Maximum
mold
thickness

35mm

153g

157mm/s

1300kN

410*410(mm)

380mm

450mm

Due to constant improvement of the product, the company reserves the inght to modify the properties and configurations without giving notice.


Overview

Manufacture: High quality-High efficient-Precision-Energy saving products,is the aim of all person of Maritime

Design: Reliable- Long service life- Modular User friendly,is the guideline of all designers of Maritime

Marketing: Create value for customers-providing cost effective injection solution is the guideline of every salesman of Maritime.

Service: Swift-Efficient-all-weather-service is the standard of every service personnel of Maritime.



Shorter cycle time with hydraulic

extension combination

High cost effectixe, catering to

different customers' needs

Personalized: Achieve high

performance





Repeatability: Accurate injection weight

is ensured though PRS function

Reliability: Low inertia co-swivel

single-cylinder injection unit



Modular combinations: Best solutions will be provided according to the requirements of customers

1.Wide range of applications
Kmtion series injection molding machine is adaptive to all known injection process. With powerful Kmotion control system,it can be integrated seamlessly With various peripherals. The complete injection. solution is suitable for special product process,so that the product can be widely applied.
Such as:ARIMOULD, AQUAMOULD, CELLMOULD, IML, IMD, PIM, OVERMOLDING, Super thick wall molding,Multiple component technology, Multiple processes combined

2. Cost effective
Kmtion series injection molding machines are the products of the legacy design and high- quality manufacture from German,as well as the assembly in China.They are very cost effective.

3.Personalized
The clamping.injection,and driving units can be combined in an optimized way according to the requirement of the customers  to ensure high performance.

4.Highly repeatable
Kmtion series injection molding machines can deliver superior injection and ensure repeated filling and consistent high quality injection.The  screw position control  function can ensure comparable injection accuracy as that of the fully automatic units

5.Reliability
Kmtion series injection molding machines can ensure long-term,high performance operation with components of superior quality.They are durable and require no frequent maintenance.



High-Performance

Injection Molding Machine

The lasting clean quality of this product is the result of the design philosophy that values flexibility, full-automation and efficiency.

The biggest expectation of the customers of Maritime: building more products that are fast, accurate and clean!


1.High-yielding Driving Technology
The high performance servo driving technology can consistently ensure high production efficiency after the cycle time is shorten. The independent action of each movement axis can be achieved to ensure high efficiency and energy conservation through multi-pump combination, servo-electric injection and hydraulic accumulator technologies

2.Powerful and accurate clamping unit
The optimized new five-point double-toggle clamping unit is firm, enduring and deformation proof; especially suitable for 24-hour non-stop operation with high speed and high pressure.

3. Adaptable injection unit
A variety of injection units, screws of different diameters, wear resistances and geometries, including those with high performance and mixed function, inside the feed tube module, can be selected to meet the personalized demand from customers.

■Electric pre-plasticization
■Electric injection
■Screw position regulation
■Accumulator injection
These solutions can improve the injection quality.

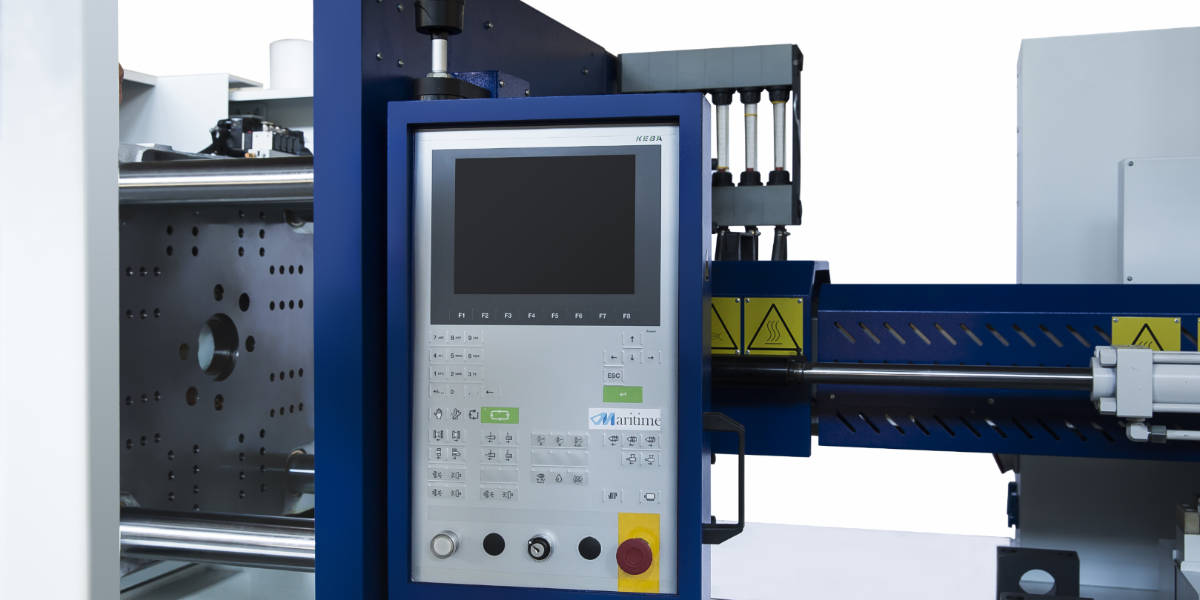

4.KM1000 Control System
KM1000 provides the same operating system for the whole system with everything under control.


Clamping Unit

1. The optimized new five-point double-toggle clamping unit ensures smooth running at high speeds. It is especially suitable for 24-hour non-stop operation with high speed and high pressure.

2. The pin bushing, pull-rod bushing and moving plate slide are made of copper material, which require as few lubrication as once per 1000-1500 moldings with volumetric lubrication system, a substantial saving of lubricant. The clamping zone is very clean.

3. Near positioned hydraulic control and high- precision control system allow the movable
with accurate positioning.

4. European type ejection mechanism featuring wide space and easy installation of the mold.

5. Sensitive mold protection function.


Injection Unit


1. Featuring in-line design: The screw, oil cylinder, and pre-plasticization motor have the same axis to ensure low inertia during highspeed injections.

2. The pre-plasticization motor is a highspeed, high-torque hydraulic motor. Electric pre-plasticization is available if better energy conservation is required.

3. The standard injection speed is in accordance with European regulation, to ensure fast speed and accurate positioning. The product has little inner stress and stable quality.

4. The speed can be as high as 800mm/s if hydraulic accumulator injection or electric injection is used.

5. Two symmetrically positioned oil cylinder, with nozzle contact force evenly distributed and precisely adjusted to ensure the concentricity between the nozzle hole and the mold gate.


6. The injection unit features full support structure with line rails: ensuring fast, smooth and low friction with higher operation precision and less energy consumption during the movement The barrel can withstand a heavier hopper.

7. Proportional backpressure control with easy operation and stable properties.

8. PID temperature control with fuzzy optimization algorithm that can ensure accurate material temperature.

9. For screws of different specification , L/D = 20:1, to ensure the consistency of plasticization.

10. For high speed screws, L/D = 24:1 or 28:1, to secure the high-speed plasticization ability.


Driving And Control Technology Unit



1.Efficient driving technology: Imported servo system + imported internal gear pump, output energy consumption variable with the load, closed-loop control of pressure and speed, energy saving, precise and fast responding.

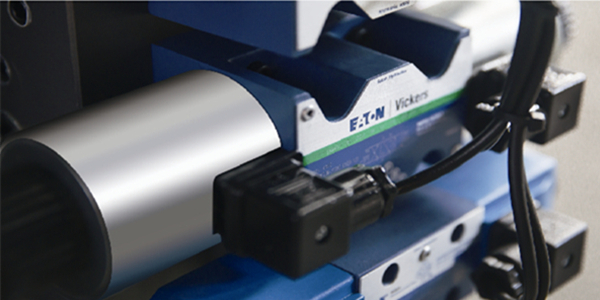

2.The modularized hydraulic valve plate and optimized hydraulic arrangement can effectively reduce the pressure loss and improve response. They also makes it easier to upgrade the function or change the oil path.

3.Environment friendly: The overflow and heat generation free servo pump control system+imported efficient cooler significantly reduce the water consumption. Hydraulic fittings and rubber holes meeting DIN standards are used to prevent oil pollution.

4.Reliable and smart control system make it rather easy to achieve high-precision, fast molding.

5.Powerful software control makes it possible to realize complex process through simple operation.

6.User interface that in line with the contemporary consumers' habit of using electronic devices.

7.Perfect injection molding machine software control, SPC quality control and seamless integration with the peripherals.

8.Efficient driving technology: Imported servo system+imported internal gear pump, output energy consumption variable with the load, closed-loop control of pressure and speed, energy saving, precise and fast responding.

9.The modularized hydraulic valve plate and optimized hydraulic arrangement can effectively reduce the pressure loss and improve response. They also makes it easier to upgrade the function or change the oil path.

10. Environment friendly: The overflow and heat generation free servo pump control system+imported efficient cooler significantly reduce the water consumption. Hydraulic fittings and rubber holes meeting DIN standards are used to prevent oil pollution.

11.Reliable and smart control system make it rather easy to achieve high-precision, fast molding.




1.Powerful software control makes it possible to realize complex process through simple operation.

2.User interface that in line with the contemporary consumers' habit of using electronic devices.

3.Perfect injection molding machine software control, SPC quality control and seamless integration with the peripherals.
