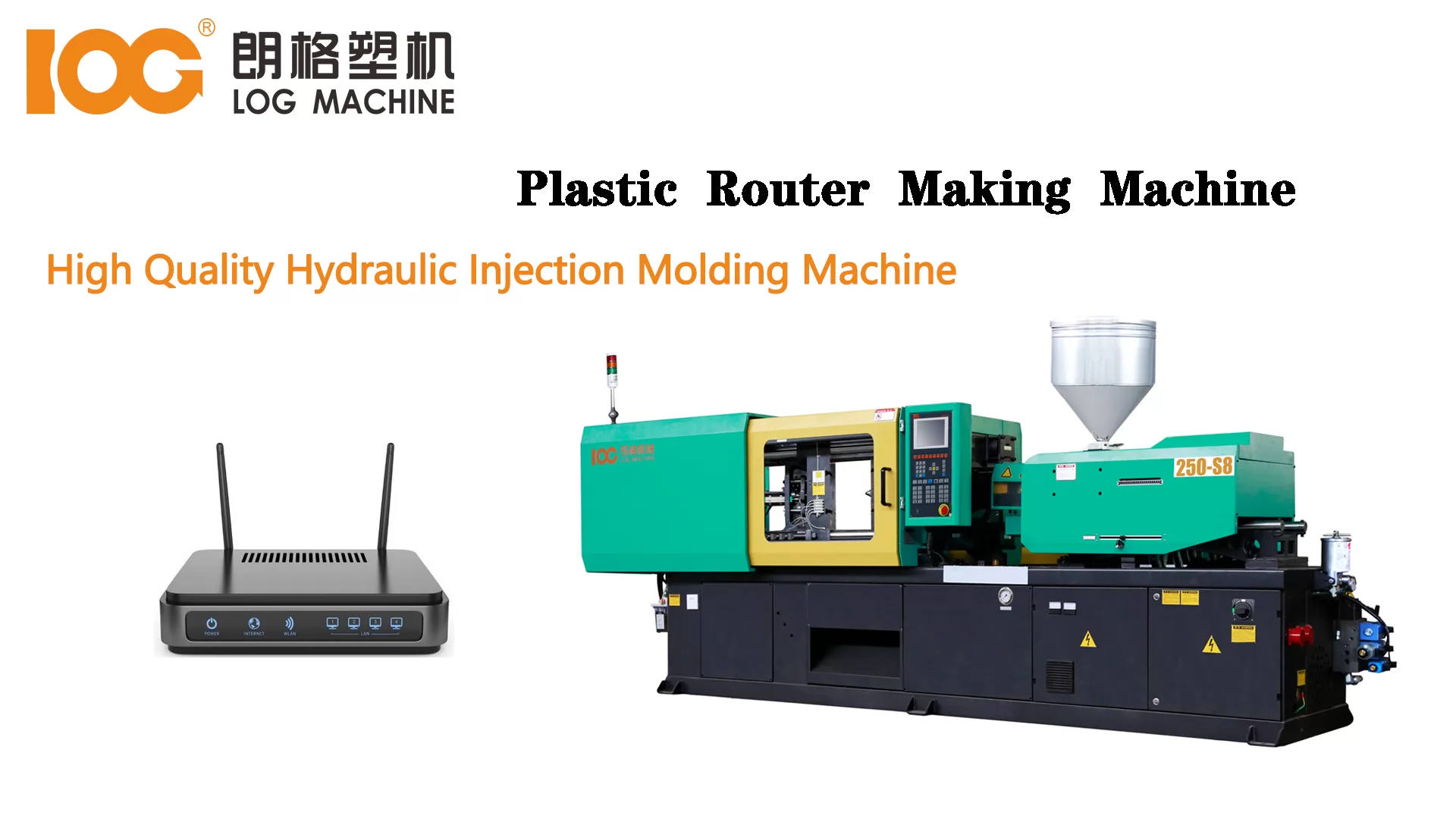

Plastic Router Moulding Machine Description
Are you looking for a machine dedicated to the production of plastic router? As a professional injection molding machine manufacturer, we have been selling affordable plastic router molding machines to customers around the world. We have various models of injection molding machines for you to choose from, which can meet your individual needs. We have a professional overseas sales team and technical engineers, if you need us to serve you, welcome to contact us.
250 Ton Injecgtion Molding Machine Parameter
-
Machine Model: Log 250 Ton
-
Clamping Force: 2500 Kn
-
Part: Router
-
Cavity: 2
| Model | LOG-250 | ||
|---|---|---|---|
| International Recognition Number | 1140/250 | ||
| Injection System | A | B | C |
| Theoretical Volume | 510 | 687 | 863 |
| Actual Injection Volume | 464 | 625 | 785 |
| 16.2 | 21.8 | 27.4 | |
| Injection Speed | 175 | 236 | 297 |
| Injection Rate | 103 | 139 | 174 |
| Screw Diameter | 50 | 58 | 65 |
| Injection Pressure | 224 | 166 | 132 |
| Aspect Ratio | 24；1 | 21：1 | 18.7：1 |
| Screw Stroke | 260 | ||
| Screw Speed | 0-180 | ||
| Clamping System | |||
| Clamping Force | 2500 | ||
| Mold Opening Stroke | 520 | ||
| Template Size | 820*790 | ||
| Connecting Rod Inner Distance | 560*530 | ||
| Bulk Modulus | 200-580 | ||
| Template Maximum Stroke | 1100 | ||
| Hydraulic Ejection Stroke | 150 | ||
| Hydraulic Ejection Force | 67 | ||
| Power / Electric Heat | |||
| Hydraulic System Pressure | 17.5 | ||
| Oil Pump Motor | 22/39 | ||
| Electric Heat | 16 | ||
| Number of Heating Control Zones | 4+ nozzle | ||
| Other | |||
| Cycle Time | 4.8 | ||
| Fuel Tank Capacity | 350 | ||
| Mechanical Dimensions | 6.2*1.46*2.15 | ||
| Theoretical Machine Weight | 8000 | ||
Plastic Router Injection Molding video
About the Price of Plastic Router Molding Machine?
The final price of the plastic router manufacturing machine should be quoted according to the specifications and configuration selected by the customer, but our price will definitely make you affordable. In the same industry, our price is more reasonable.
If you need to buy or consult the quotation of plastic router injection molding machine, please contact us!
